Medium airport · France

Toulouse-Francazal (BA 101) Air BaseLFBF

43.5456°, 1.3675°
5,906 ft
Longest runway
1
Runways
535 ft
Elevation

Runway & Layout

Toulouse-Francazal (BA 101) Air Base runway & taxiway layout
Runway & taxiway layout — OpenStreetMap (ODbL) / OurAirports

Radio Frequencies

ATIS
141.75 MHz
TWR
118.4 MHz
GND
122.1 MHz
APP
118.8 MHz
APP
125.175 MHz
TOULOUSE APP
AFIS
121.25 MHz
TOULOUSE INFO
OurAirports

Navaids

TLU TACAN Toulouse/Francazal 116.00 MHz
OurAirports

Runways · 1

RunwayDimensions SurfaceTrue headingLit
12/30 5,906 × 148ft Asphalt 115° ✓
OurAirports

Airport Specifications

ICAO code
LFBF
OurAirports
Airport class
Medium airport
OurAirports
Scheduled service
No
OurAirports
Runway surface
Asphalt
OurAirports
Served city
Toulouse/Francazal
OurAirports

Location

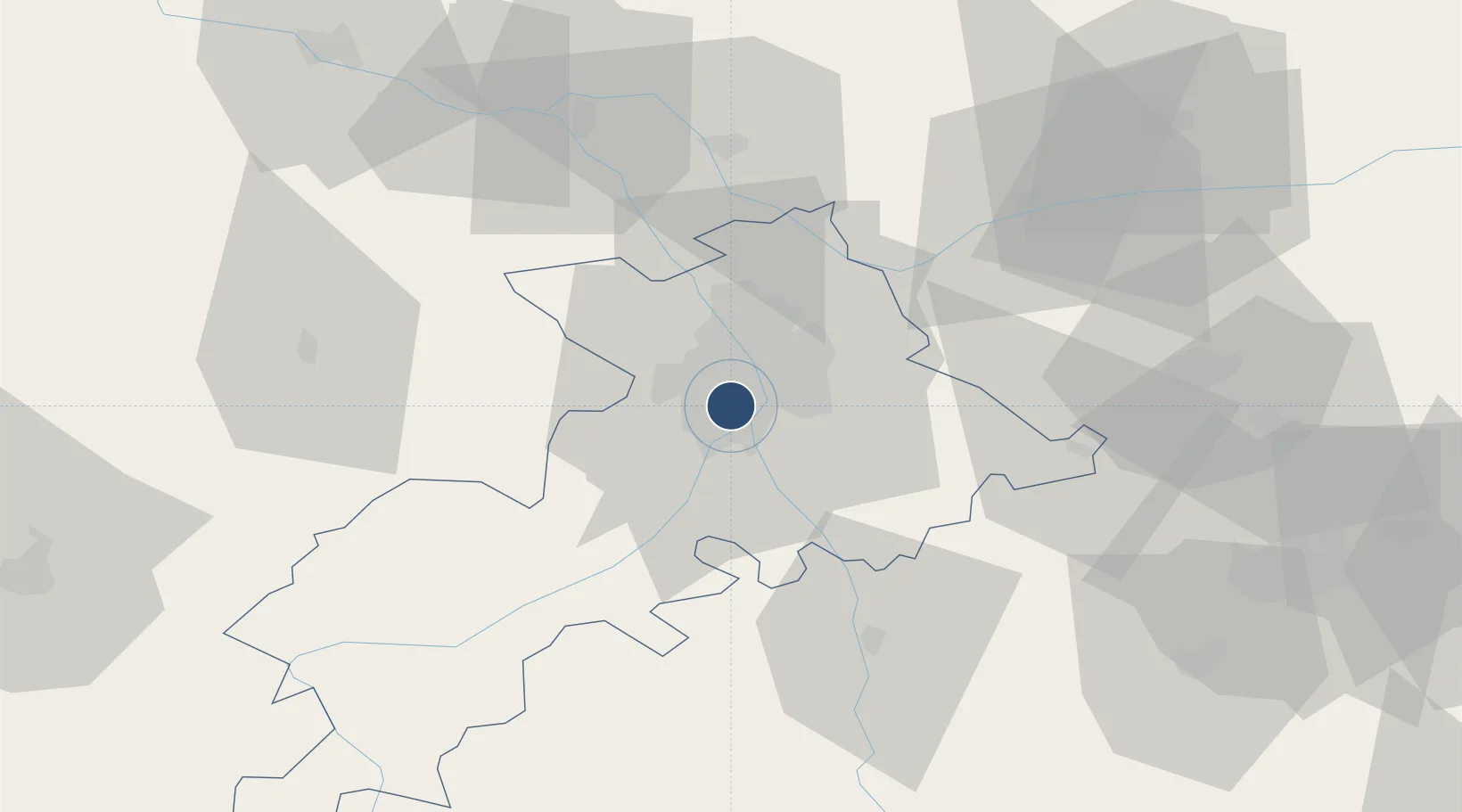

Location of LFBF
Natural Earth 10m (public domain) · Haute-Garonne · LFBF · 43.55, 1.37Google ↗OSM ↗Yandex ↗

Nearby Logistics Neighbours

Airports
  1. 1Toulouse-Blagnac Airport9 km
  2. 2Aérodrome de Saint-Girons - Antichan64 km
  3. 3Auch Gers Airfield64 km
  4. 4Albi Le Sequestre airport73 km
  5. 5Castres Mazamet Airport74 km
Nearest neighbours — logibook spatial index (haversine) over the source coordinates
Cities
  1. 1Portet-Saint-Simon2 km
  2. 2Roques4 km
  3. 3Villeneuve-Tolosane4 km
  4. 4Lardenne4 km
  5. 5Pins-Justaret7 km
Nearest neighbours — logibook spatial index (haversine) over the source coordinates
Ports
  1. 1Port-La-Nouvelle150 km
  2. 2Port-Vendres183 km
  3. 3Sete189 km
  4. 4Rosas205 km
  5. 5Bordeaux213 km
Nearest neighbours — logibook spatial index (haversine) over the source coordinates
Trade Zones
  1. 1ZFU Toulouse9 km
  2. 2ZFU Béziers151 km
  3. 3ZFU Perpignan156 km
  4. 4ZFU Montpellier200 km
  5. 5ZFU Hauts de Garonne211 km
Nearest neighbours — logibook spatial index (haversine) over the source coordinates
