Large airport · Spain

Adolfo Suárez Madrid–Barajas AirportLEMD

40.4934°, -3.5722°
14,271 ft
Longest runway
4
Runways
1,998 ft
Elevation

Runway & Layout

Adolfo Suárez Madrid–Barajas Airport runway & taxiway layout
Runway & taxiway layout — OpenStreetMap (ODbL) / OurAirports

Radio Frequencies

ATIS
118.25 MHz
TWR
118.07 MHz
TWR 36L
TWR
118.15 MHz
TWR 14R
TWR
118.67 MHz
TWR 36R
TWR
118.975 MHz
TWR 14L
GND
121.85 MHz
CLD
130.075 MHz
Delivery East
CLD
130.35 MHz
Delivery West
APP
127.5 MHz
MADRID APP
ATIS DEP
130.85 MHz
ATIS Departure
EMR
122.975 MHz
FIRE
OurAirports

Navaids

ACD NDB Alcobendas 417 kHz
BRA VOR-DME Barajas 116.45 MHz
PDT VOR-DME Perales 116.95 MHz
SSY VOR-DME S.S.rRyes 117.85 MHz
OurAirports

Runways · 4

RunwayDimensions SurfaceTrue headingLit
18R/36L 14,271 × 197ft Asphalt 181° ✓
14R/32L 13,084 × 197ft Asphalt 144° ✓
14L/32R 11,483 × 197ft Asphalt 144° ✓
18L/36R 11,483 × 197ft Asphalt 181° ✓
OurAirports

Airport Specifications

IATA code
MAD
OurAirports
ICAO code
LEMD
OurAirports
Airport class
Large airport
OurAirports
Scheduled service
Yes
OurAirports
Runway surface
Asphalt
OurAirports
Served city
Madrid
OurAirports

Location

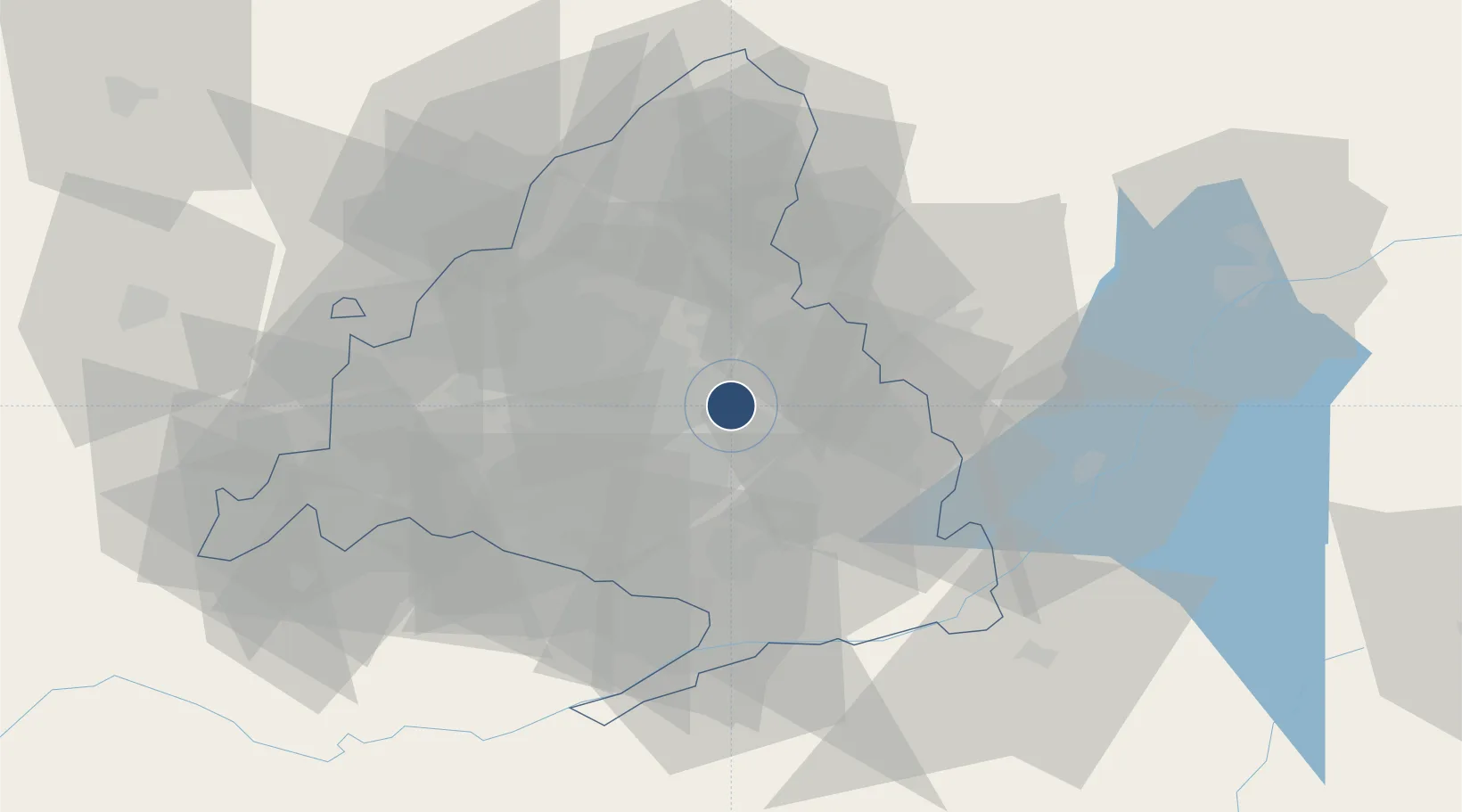

Location of LEMD
Natural Earth 10m (public domain) · Madrid · LEMD · 40.49, -3.57Google ↗OSM ↗Yandex ↗

Nearby Logistics Neighbours

Airports
  1. 1Madrid–Torrejón Airport / Torrejón Air Base10 km
  2. 2Madrid-Cuatro Vientos Airport23 km
  3. 3Getafe Air Base26 km
  4. 4Salamanca Airport170 km
  5. 5Valladolid Airport172 km
Nearest neighbours — logibook spatial index (haversine) over the source coordinates
Cities
  1. 1Paracuellos de Jarama5 km
  2. 2San Sebastian de los Reyes8 km
  3. 3Madrid10 km
  4. 4Vicalvaro11 km
  5. 5Mejorada del Campo13 km
Nearest neighbours — logibook spatial index (haversine) over the source coordinates
Ports
  1. 1Sagunto301 km
  2. 2Valencia301 km
  3. 3Burriana307 km
  4. 4El Grao310 km
  5. 5Puerto De Bilbao321 km
Nearest neighbours — logibook spatial index (haversine) over the source coordinates
Trade Zones
  1. 1Depósito Franco de Madrid-Aeropuerto4 km
  2. 2Depósito Franco de Villafría (Burgos)209 km
  3. 3Depósito Franco de Zaragoza267 km
  4. 4Depósito Franco de Valencia301 km
  5. 5Depósito Franco de Bilbao319 km
Nearest neighbours — logibook spatial index (haversine) over the source coordinates
